Round and V-belts
Twisted and wedge-shaped belts from polyurethane are of a very broad applicability:
Transmission of small drive torque at lower and medium speed.

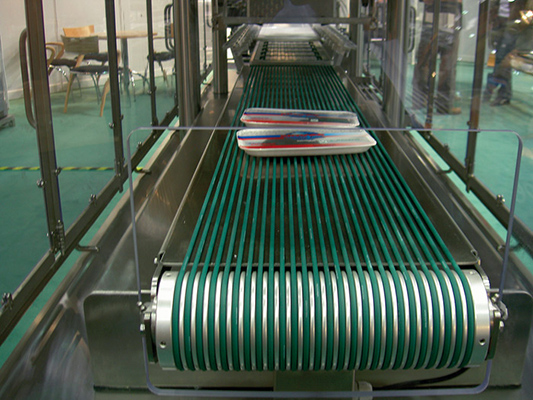

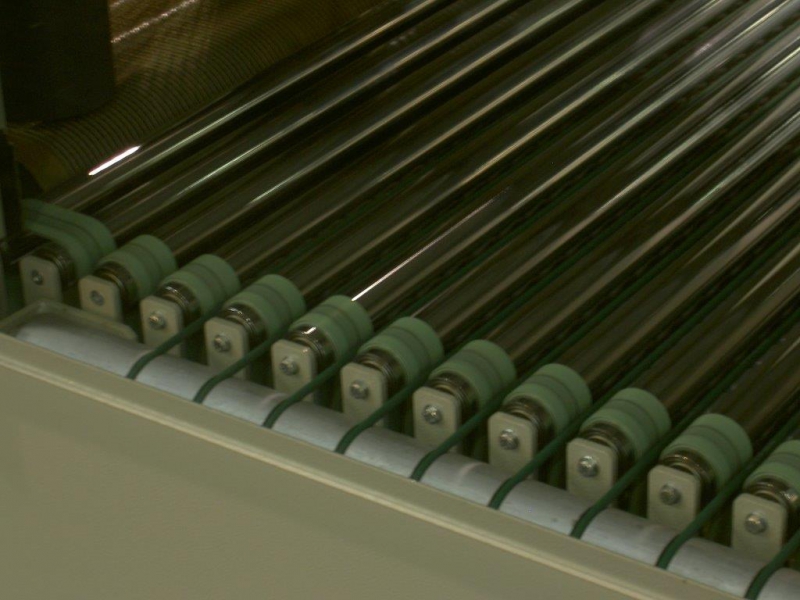

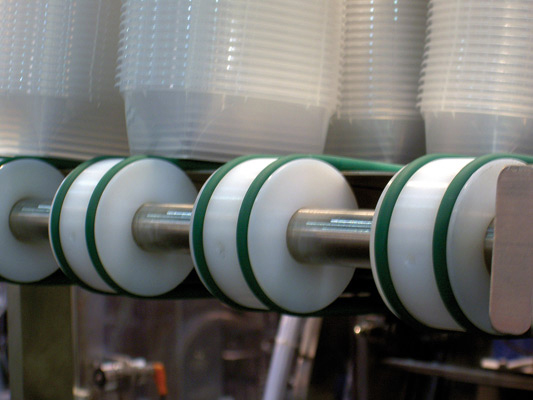

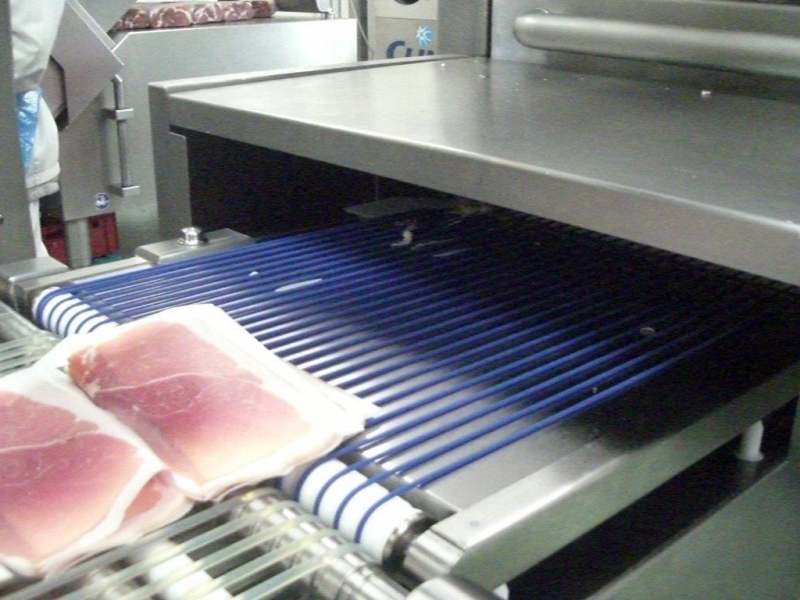

Range of usage for a light transportation.
All types of belts show the resistance against tearing, shattering and twisting. All of them are resistant against chemicals, oils and grease. They are not sensitive to the dust, soil and humidity. Admissible temperature are between -20 °C up to +60 °C. The PU-series twisted belts are green-coloured with a coarse surface. On customer´s demand, these belts may be supplied with the fine finish surface. All the wedge-shaped belts are light-green coloured having the 92 A hardness.
WEDGE-SHAPED BELTS
 |
Type
|
Size b x h |
Dynamic load 8% |
Min.Ø of belt rollers |
|
mm
|
N
|
mm
|
||
|
L
|
8 x 5
|
16
|
40
|
|
|
Z
|
10 x 6
|
28
|
50
|
|
|
A
|
13 x 8
|
45
|
60
|
|
|
B
|
17 x 11
|
62
|
75
|
|
|
C
|
22 x 14
|
105
|
100
|
“RU“ SERIES TWISTED BELTS
|
Ø
|
Nominal transmission power (kw) - intensity 8 % |
Dynamic load |
Min.Ø of belt rollers |
||||
|
mm
|
speed m/sec
|
N
|
mm
|
||||
|
2,5
|
5
|
10
|
15
|
4%
|
8%
|
||
|
2
|
0,01
|
0,02
|
0,04
|
0,06
|
5,8
|
9
|
15
|
|
3
|
0,02
|
0,05
|
0,07
|
0,12
|
13
|
21
|
20
|
|
4
|
0,03
|
0,08
|
0,16
|
0,23
|
23
|
36
|
35
|
|
5
|
0,04
|
0,13
|
0,25
|
0,37
|
35
|
58
|
45
|
|
6
|
0,06
|
0,18
|
0,36
|
0,50
|
52
|
85
|
50
|
|
7
|
0,12
|
0,25
|
0,50
|
0,75
|
70
|
115
|
60
|
|
8
|
0,17
|
0,35
|
0,70
|
0,90
|
90
|
150
|
70
|
|
9
|
0,20
|
0,40
|
0,85
|
1,12
|
120
|
190
|
75
|
|
10
|
0,27
|
0,55
|
1,05
|
1,50
|
140
|
230
|
80
|
|
12
|
0,40
|
0,80
|
1,50
|
2,00
|
210
|
330
|
100
|
|
15
|
0,58
|
1,15
|
2,00
|
3,30
|
320
|
520
|
130
|
